Troubleshooting Buchi Rotavapor Systems: Complete Technical Guide

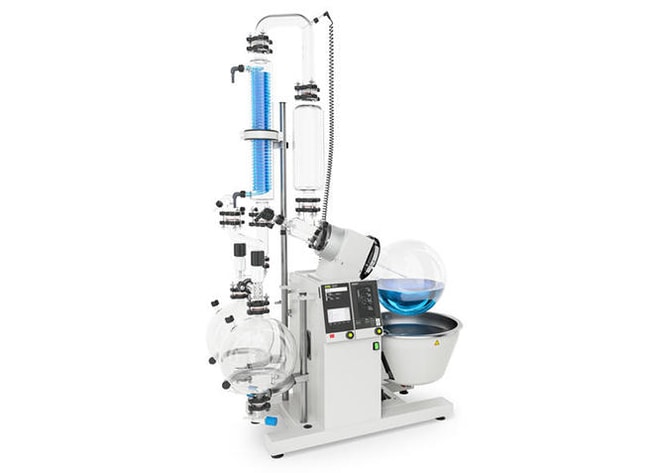

Rotary evaporators are essential instruments in modern laboratories, and Buchi Rotavapor systems represent the gold standard for solvent evaporation. However, even the most reliable equipment can experience operational issues. This comprehensive troubleshooting guide will help you diagnose and resolve common problems with Buchi Rotavapor systems including R-100, R-220 Pro, R-300, and other models.

Understanding Your Buchi Rotavapor System

Before diving into troubleshooting, it's essential to understand the key components of your Rotavapor system. Modern Buchi rotary evaporators consist of a heating bath, rotating flask assembly, condenser system, vacuum pump, and electronic controls. Each component plays a critical role in the evaporation process, and problems can arise in any of these subsystems.

Common Issues and Diagnostic Procedures

1. Vacuum System Problems

Vacuum issues are among the most frequent problems encountered with rotary evaporators. Poor vacuum performance can severely impact evaporation efficiency and extend processing times.

Symptoms:

• Slow or incomplete evaporation
• Inability to reach target vacuum levels
• Audible hissing sounds indicating leaks
• Vacuum gauge reading inconsistent or unstable

Diagnostic Procedure:

First, isolate the vacuum system by disconnecting the Rotavapor from the vacuum pump. Test the pump independently to verify it achieves the specified ultimate vacuum (typically <10 mbar for V-700 or 5 mbar for V-300 pumps). If the pump performs correctly, the problem lies within the evaporator assembly.

Systematically inspect each connection point, starting from the vacuum controller and working toward the condenser. Pay special attention to:

• Seals and O-rings: Examine the rotary seal (VS-22 or VS-26 depending on model) for wear, cracks, or deformation
• Glassware joints: Check all ground glass connections for chips, cracks, or improper seating
• Tubing connections: Inspect vacuum tubing for brittleness, cracks, or loose connections
• Flask attachment: Ensure the evaporating flask is properly secured and sealed

Solutions:

• Replace worn seals immediately using genuine Buchi replacement parts
• Apply a thin layer of high-vacuum grease to ground glass joints
• Replace damaged glassware components
• Tighten all clamp connections
• Consider using a leak detector spray or ultrasonic leak detector for difficult-to-find leaks

2. Temperature Control Issues

Temperature regulation problems can result from heating bath malfunctions, sensor failures, or electronic control issues.

Error Codes and Their Meanings:

| Error Code | Description | Model Applicability | Resolution | |------------|-------------|---------------------|------------| | E01 | Temperature sensor failure | R-220 SE, R-300 | Check sensor connection; replace if damaged | | E02 | Lift motor malfunction | R-220 SE, R-300 | Inspect motor assembly; check electrical connections | | E03 | Heating bath overtemperature | All models | Reset overheat cutout; check thermostat | | E04 | Communication error | R-300 with Interface | Verify cable connections; restart system | | E05 | Rotation motor fault | R-220 Pro, R-300 | Inspect motor brushes; check for mechanical obstruction |

Diagnostic Steps:

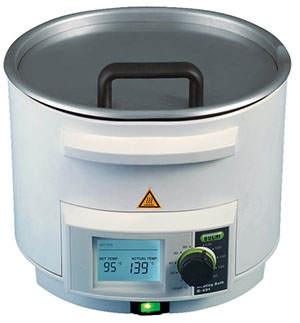

If your heating bath fails to reach or maintain the set temperature, first verify that the overheat cutout has not been triggered. This safety feature prevents damage from overheating conditions. The reset button is typically located on the heating bath housing.

Check the temperature sensor by comparing the displayed temperature with an independent thermometer. A discrepancy of more than 5°C indicates sensor calibration issues or failure.

Solutions:

• Reset overheat cutout if triggered
• Recalibrate temperature sensor according to manufacturer procedures
• Replace faulty temperature sensors
• Ensure adequate heating bath fluid level (oil or water)
• Clean heating elements if mineral deposits are present
• Verify electrical connections to heating elements

3. Mechanical Failures

Mechanical issues can manifest as unusual noises, vibrations, or inability to rotate the evaporating flask.

Common Mechanical Problems:

Motor Issues:

• Failure to start rotation
• Irregular rotation speed
• Excessive vibration during operation
• Unusual grinding or squealing noises

Lift Mechanism Problems:

• Flask will not raise or lower
• Jerky or uneven lift motion
• Complete lift mechanism failure

Diagnostic Approach:

For rotation motor issues, first ensure the flask assembly is properly balanced and not overloaded. The maximum flask capacity varies by model (4L for R-100, 5L for R-300, 10L for R-220 Pro). Overloading can strain the motor and drive mechanism.

Inspect the drive belt or gear system for wear. Listen carefully to identify the source of unusual noises—grinding typically indicates bearing wear, while squealing suggests belt slippage.

Solutions:

• Balance the flask assembly properly
• Replace worn drive belts
• Lubricate bearing assemblies per maintenance schedule
• Check and tighten motor mounting bolts
• Replace motor brushes if worn (typically every 2000 operating hours)
• Clean and lubricate lift mechanism rails
• Verify electrical power supply to motor assemblies

4. Evaporation Performance Problems

Poor evaporation performance, including bumping, foaming, or excessively slow evaporation rates, can result from improper operating parameters or contamination.

Troubleshooting Bumping:

Bumping occurs when evaporation is too vigorous, causing sample to splash into the condenser. To prevent bumping:

• Reduce heating bath temperature by 10-20°C
• Decrease vacuum level gradually
• Reduce rotation speed to 80-120 rpm
• Use a properly sized bump trap
• Pre-cool samples containing dissolved gases

Slow Evaporation Issues:

| Parameter | Optimal Range | Adjustment | |-----------|---------------|------------| | Vacuum Pressure | 50-100 mbar for most solvents | Increase vacuum (lower pressure) | | Bath Temperature | 20°C above solvent boiling point at vacuum | Increase temperature carefully | | Rotation Speed | 120-180 rpm standard | Increase to improve surface area | | Condenser Temperature | -10°C to +5°C | Ensure adequate cooling |

5. Condenser and Cooling System Issues

Inadequate condenser cooling results in solvent vapors escaping through the vacuum system, reducing recovery efficiency and potentially damaging the vacuum pump.

Diagnostic Checks:

• Verify coolant flow rate through condenser
• Check condenser temperature (should be at least 20°C below solvent vapor temperature)
• Inspect condenser coils for blockages or scale buildup
• Ensure proper coolant level in recirculating chiller

Solutions:

• Descale condenser coils using appropriate cleaning solutions
• Increase coolant flow rate
• Lower coolant temperature setting
• Check and clean coolant filters
• Verify chiller compressor operation

Step-by-Step Troubleshooting Flowchart

Quick Diagnostic Decision Tree:

1. Is the unit powered on?

   • No → Check power supply, fuses, and circuit breakers
   • Yes → Proceed to step 2

2. Does the display show error codes?

   • Yes → Consult error code table above
   • No → Proceed to step 3

3. Is vacuum adequate (<100 mbar)?

   • No → Follow vacuum troubleshooting procedures
   • Yes → Proceed to step 4

4. Does flask rotate smoothly?

   • No → Follow mechanical troubleshooting procedures
   • Yes → Proceed to step 5

5. Is heating bath at temperature?

   • No → Follow temperature control procedures
   • Yes → Optimize operating parameters

Safety Precautions

CRITICAL SAFETY REQUIREMENTS:

⚠️ Before any troubleshooting or maintenance:

1. Disconnect electrical power - Always unplug the unit or switch off at the breaker before internal inspection
2. Allow cooling time - Heating baths can remain hot for 30+ minutes after shutdown
3. Release vacuum - Never disconnect glassware under vacuum; always vent to atmosphere first
4. Wear appropriate PPE - Safety glasses, heat-resistant gloves, and lab coat required
5. Work in ventilated area - Ensure adequate fume extraction when working with solvent residues

Electrical Hazards:

Buchi Rotavapor systems operate on line voltage (100-240V AC). Only qualified personnel should perform internal electrical troubleshooting. According to OSHA regulations (29 CFR 1910.147), lockout/tagout procedures must be followed when servicing electrical equipment in laboratory settings.

Chemical Exposure:

Residual solvents may be present in the system. Follow your facility's Chemical Hygiene Plan and consult Safety Data Sheets (SDS) for proper handling procedures.

Pressure Hazards:

Glassware under vacuum presents implosion risk. Always inspect glassware for cracks or chips before use. Consider using plastic-coated glassware for added protection.

Preventive Measures

Most troubleshooting situations can be avoided through proper preventive maintenance:

• Daily: Visual inspection of glassware, seals, and connections
• Weekly: Clean glassware thoroughly; check vacuum performance
• Monthly: Inspect and lubricate moving parts; test safety cutouts
• Quarterly: Replace vacuum pump oil (if applicable); comprehensive system check
• Annually: Professional service calibration and seal replacement

When to Contact Service

While many issues can be resolved in-house, certain problems require factory-trained technicians:

• Persistent error codes after basic troubleshooting
• Internal electronic failures
• Motor or bearing replacement
• Calibration of temperature sensors and vacuum controllers
• Any issue involving warranty-sealed components

Additional Resources

For model-specific troubleshooting information, always consult your Buchi Rotavapor operating manual. Official documentation is available through the Buchi website (www.buchi.com) under the Support section.

References:

1. Buchi Labortechnik AG. "Operating Manual Rotavapor R-300." Buchi.com, 2024. www.buchi.com/support
2. U.S. Department of Labor. "Occupational Exposure to Hazardous Chemicals in Laboratories." OSHA.gov, 29 CFR 1910.1450. www.osha.gov/laws-regs/regulations/standardnumber/1910/1910.1450
3. Buchi Labortechnik AG. "Service and Maintenance Guidelines for Rotary Evaporators." Technical Documentation, 2024.

---

This technical guide is intended for use by trained laboratory personnel familiar with rotary evaporator operation. Always follow your institution's safety protocols and manufacturer guidelines.
